NISOC   SPECIFICATION

DRILLING   FLUIDS  PRODUCT  DATA

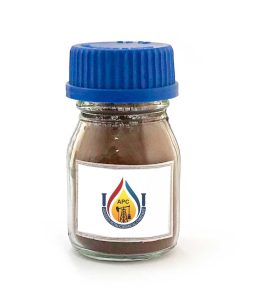

FER-O-BAR

Download PDF

Product Description :

    Fer-O-Bar is trade name of  Hematite or Iron oxide (III) , also

    known as red iron oxide . Contains  85% hematite  and 15%

    Aluminum – zinc silicates. It does not swell in presence of water.

Application:



  • Weighting material.

  • Increasing density.



Typical Physical Properties :

Requirements

Unit

Specification

pH at room temp.

 & 180˚ F

_

6.5

Specific gravity

_

4.70  min

Residue on ASTM sieve

No. 200

%

3   max

Residue on ASTM sieve

No. 300

%

10 + 5

Water soluble solids

%

0.1  max

Magnetic attraction

Wt  %

5  max

Soluble alkaline earth

Metal as calcium

ppm

250  max



Fer-O-Bar  Continue:

Recommended Treatment:



    It depends on drilling fluids desirable specific gravity.

Source :



    KPA



Packaging :



  • 5 MT Bigbags, UV and heat resistance, with 8 PP belt loops

      each 60 mm wide, fully extended to the bottom.

   B-  25 Kg Kraft  (70 gr/m2) , 5 ply and waterproof sacks.



    Marked on : Name of manufacturer , Batch No. and Production  date.



Safety Handling:



  • Non – toxic.

  • Use dust mask during usage.

  • Keep in dry and sheltered place.
